Description

Installation Manual

Description Specifications
Dimensions (WxLxH) 30'x60'x20'
Side-wall Height 12 ft
Door size (WxH) (Front & Rear) 14'x13'
Door Type Mechanical Rollup Door
Man Door (WxH) 2.6'x6.6'
Frame Double Truss Galvanized Tube
Steel Frame Hot Dip Galvanized Steel
Truss tube 16 Gauge
Tarp Fabric PE or PVC
Tarp Color (customizable) White with Green/Red Edge
Temperature resistance -22 - +158 °F
Arch Ø Φ 48x1.5mm
Purlin Ø Φ 48x1.5mm
Arch Spacing 10 ft
Number of Arch 7
Number of Anchor plates 14
Tension System Pipe and Ratchet Tie-Down System
Average assembly time for DIY with 4 persons 3 Days
Snow Load 48 lbs/ft²
Wind Load 60 miles/h
Tarp lifespan 7-10 years, depending on the type of fabric and environmental conditions.

Frame lifespan

15+ Years

Warranty

- PE: 2 Years Warranty.
- PVC: 8 Years Warranty.

Fabric (Optional)

  • Economical - 11oz/m²(300 gsm) PE Tarpaulin Fabric
  • Heavy Duty - 16oz/m²(450 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 26oz/m²(750 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
  • Please contact us to order.

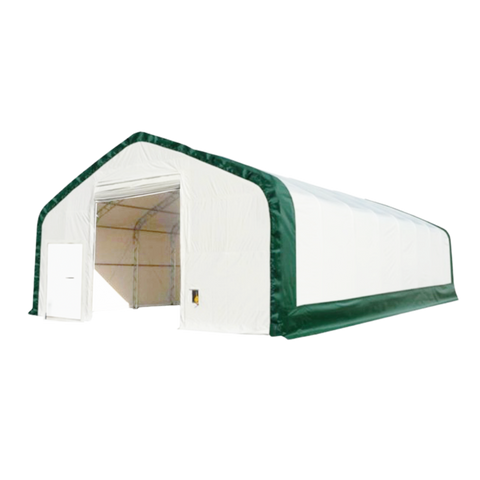

Double Truss Storage Shelter W30'xL60'xH20'

Sale price $6,400.00
Regular price $11,549.00You saved$5,149.00 OFF
Condition: Brand New
  • 18oz PVC
  • 22oz PVC

Please contact customer service 24 hours before picking up the goods to confirm!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Description

Installation Manual

Description Specifications
Dimensions (WxLxH) 30'x60'x20'
Side-wall Height 12 ft
Door size (WxH) (Front & Rear) 14'x13'
Door Type Mechanical Rollup Door
Man Door (WxH) 2.6'x6.6'
Frame Double Truss Galvanized Tube
Steel Frame Hot Dip Galvanized Steel
Truss tube 16 Gauge
Tarp Fabric PE or PVC
Tarp Color (customizable) White with Green/Red Edge
Temperature resistance -22 - +158 °F
Arch Ø Φ 48x1.5mm
Purlin Ø Φ 48x1.5mm
Arch Spacing 10 ft
Number of Arch 7
Number of Anchor plates 14
Tension System Pipe and Ratchet Tie-Down System
Average assembly time for DIY with 4 persons 3 Days
Snow Load 48 lbs/ft²
Wind Load 60 miles/h
Tarp lifespan 7-10 years, depending on the type of fabric and environmental conditions.

Frame lifespan

15+ Years

Warranty

- PE: 2 Years Warranty.
- PVC: 8 Years Warranty.

Fabric (Optional)

  • Economical - 11oz/m²(300 gsm) PE Tarpaulin Fabric
  • Heavy Duty - 16oz/m²(450 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 26oz/m²(750 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
  • Please contact us to order.
Double Truss Storage Shelter W30'xL60'xH20'
Double Truss Storage Shelter W30'xL60'xH20'
Ask a Question
Double Truss Storage Shelter W30'xL60'xH20'
Condition: Brand New

All items are final sale. No returns or exchanges. Please inspect the goods carefully while picking them up.

Package Size

-LxWxH (inch): 124x44x47
-Weight (lb): 3000 (for 16oz PVC); 3861 (for 23oz PVC)
-A forklift or equivalent is required for unloading.

For pick-up only

The buyer is responsible for the transportation and unloading of the merchandise.
